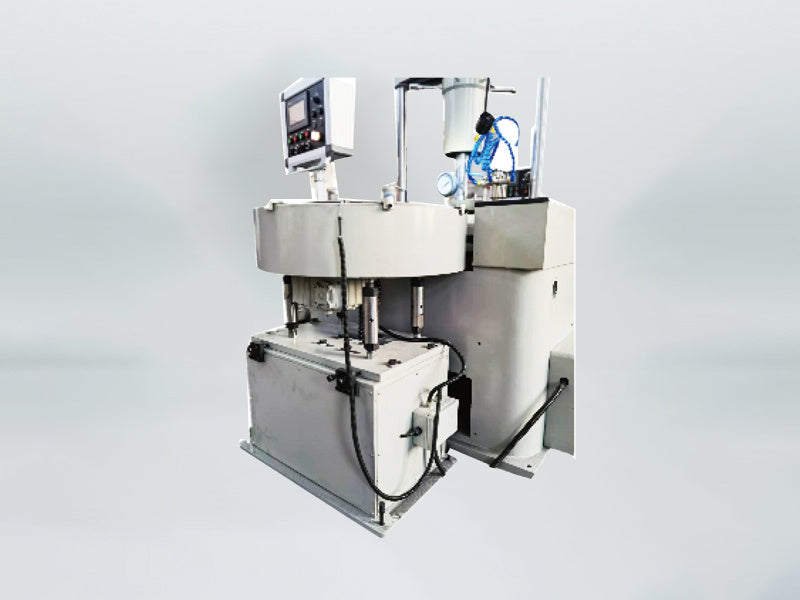

Engineered for ultimate precision, the BASEGLOBAL 3M7266 Vertical Steel Ball Lapping Machine is designed for the fine lapping and super-finishing of steel balls following hard grinding processes (ideal for sizes under 3 mm within the 2–12.7 mm range). Featuring an external feeding disc arrangement and an integrated touchscreen control station, this machine combines advanced technological integration with robust industrial reliability to achieve superior surface finish and spherical geometry.
Key Features & Technical Specifications
Variable Frequency Control: Independent frequency conversion speed regulation for both the spindle and the feeding disc to optimize operational flexibility.
Precision Pressurization: Hydraulic loading system backed by compressed spring mechanical pressure holding, delivering a maximum working pressure of 40 kN.
Uniform Load Distribution: Advanced eccentric pressing layout ensures even loads across the grinding plates.
Advanced Safety & Operation: Equipped with multiple electrical safety control systems and a user-friendly touchscreen interface mounted directly on the button station for effortless parameter configuration.
Lubrication & Capacity: Features reliable grease lubrication for spindle bearings, a 4 kW main motor, a 50 kg maximum ball charge capacity, and a total machine weight of 2500 kg ($2142 \times 1760 \times 1935$ mm footprint).
