Customization services available to meet your exact requirements.
Technical Indicator
Specification / Value
Processing Steel Ball Diameter
5 ～ 40 mm
Flashing Plate Size (D × d × h)
800 × 314 × 90 mm
Main Spindle Speed
60 ～ 130 r/min
Feeding Plate Speed
0.009 ～ 0.09 / 0.043 ～ 0.54 r/min
Max Working Pressure
300 kN
Max Loading Capacity
650 kg
Main Motor Power
45 kW
Machine Overall Dimensions (L × B × H)
3522 × 3733 × 1500 mm
Machine Weight
12,000 kg

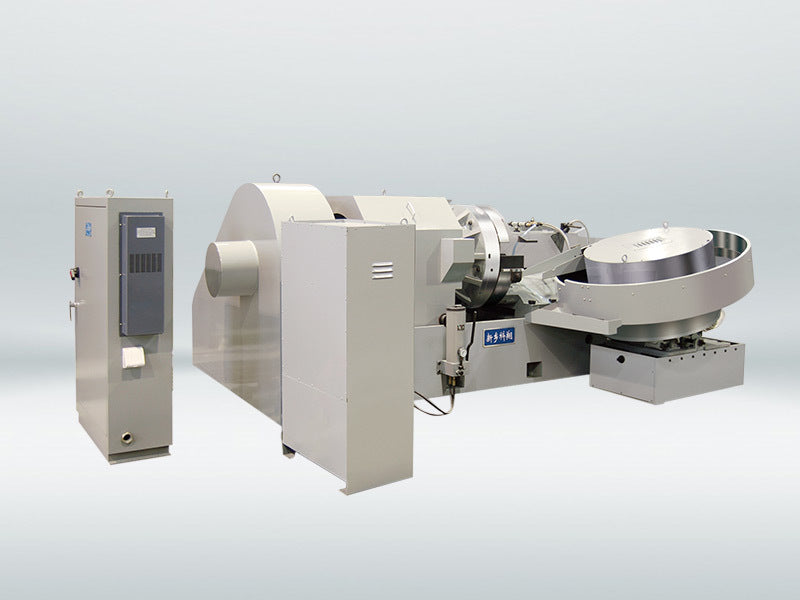

Engineered for heavy-duty, high-efficiency stock removal, the 3M4980C Horizontal Steel Ball Flashing Machine is a premier industrial solution designed for the initial flashing and rough machining of steel ball blanks. Processing balls ranging from 5mm to 40mm in diameter, this robust machine features an open-frame heavy-duty cast bed, advanced variable-frequency control, and a maximum working pressure of 300 kN, delivering exceptional stability, precision, and energy savings for global bearing and precision component manufacturers.
Key Features & Technical Advantages:
High-Rigidity Open-Frame Bed: Cast from high-strength materials with an open-structure design, minimizing structural deformation and ensuring absolute stability under heavy industrial workloads.
Advanced Loading & Pressing System: Features turning-plate pressurization combined with an open-type hydraulic loading system for optimal force distribution and consistent performance.
Heavy-Duty Lubricated Spindle: Equipped with an automatic lubrication system designed for high-load-capacity main spindle bearings, extending equipment lifespan and reliability.
Variable Frequency & Gearless Drive: Integrates spindle frequency conversion for energy conservation, paired with an advanced gearless drive system for smoother operation.
Optimized Feed & Safety Mechanism: Features a stepless variable-frequency adjustable inclined plate with dual-speed cone-pulley shifting, smooth ball-climbing inclines for seamless feeding, and an integrated anti-collision device for the two plates.
