Technical Indicator
Specification / Value
Grinding / Lapping Wheel Size
1000 × 450 × 70 mm
Max Workpiece Size (Disc-shaped, Diameter × Height)
275 × 100 mm
Upper Wheel Motor Power
7.5 kW
Upper Wheel Speed
5 ～ 80 r/min
Lower Wheel Motor Power
7.5 kW
Lower Wheel Speed
5 ～ 80 r/min
Inner Ring Motor Power
3 kW
Inner Ring Speed
5 ～ 50 r/min
Machine Inlet Air Pressure
0.8 MPa
Machine Overall Dimensions (L × B × H)
2710 × 2730 × 2760 mm
Machine Weight
8300 kg
Looking for reliable semi-automatic double-sided grinding machinery? Discover the MB43100C Semi-Automatic Double-Sided Grinding Machine by BASEGLOBAL. Designed for high-precision grinding of steel, cast iron, carbide, and ceramics with planetary mechanisms, three-stage pneumatic pressure control, and heavy-duty casting construction. Custom-built configurations are available. Contact our engineering team today via WhatsApp or inquiry form for a factory-direct quote!
Overview:

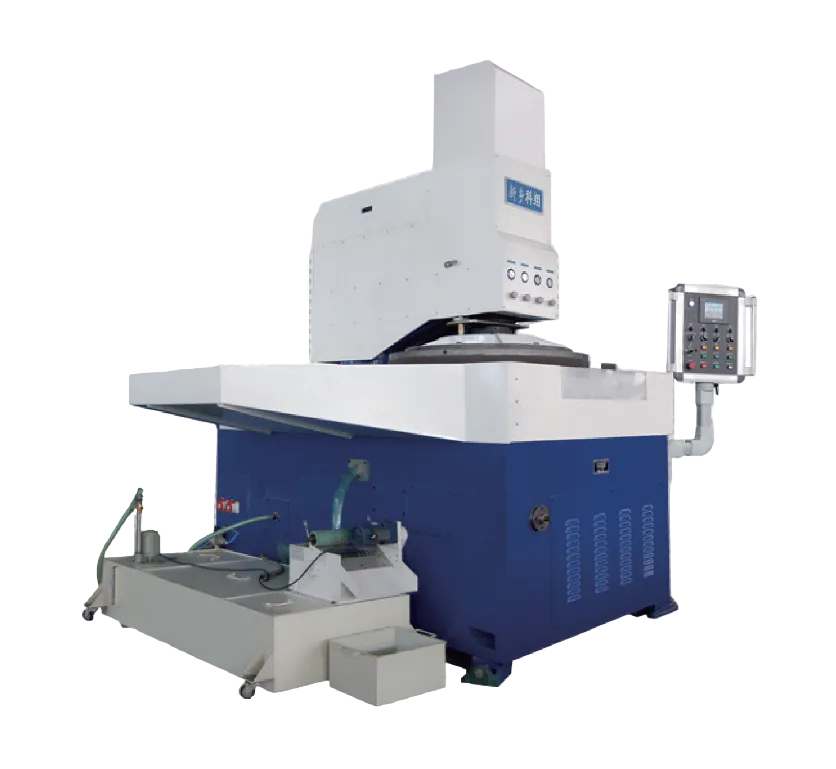

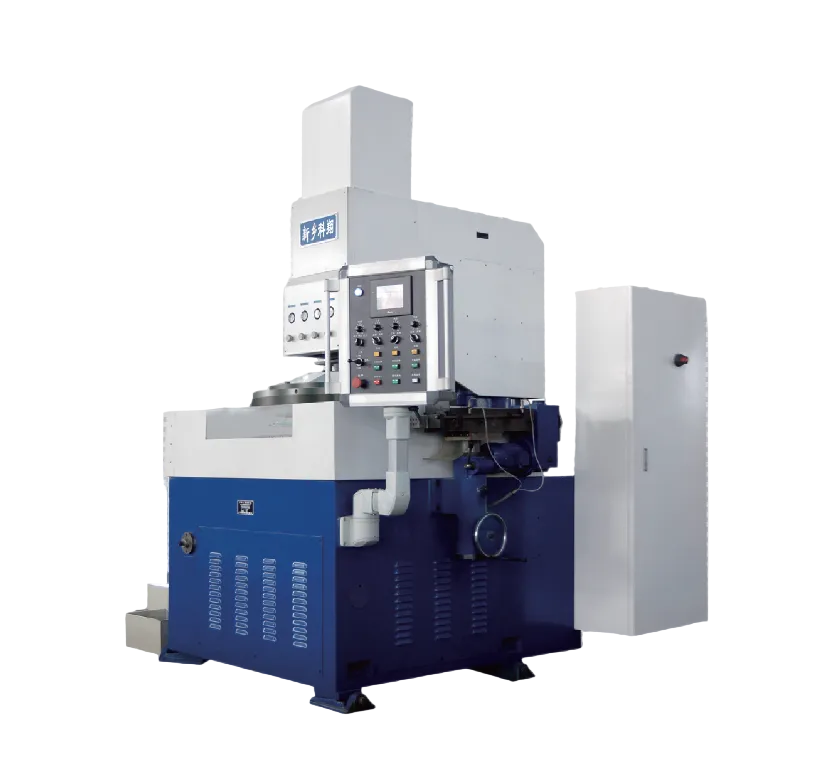

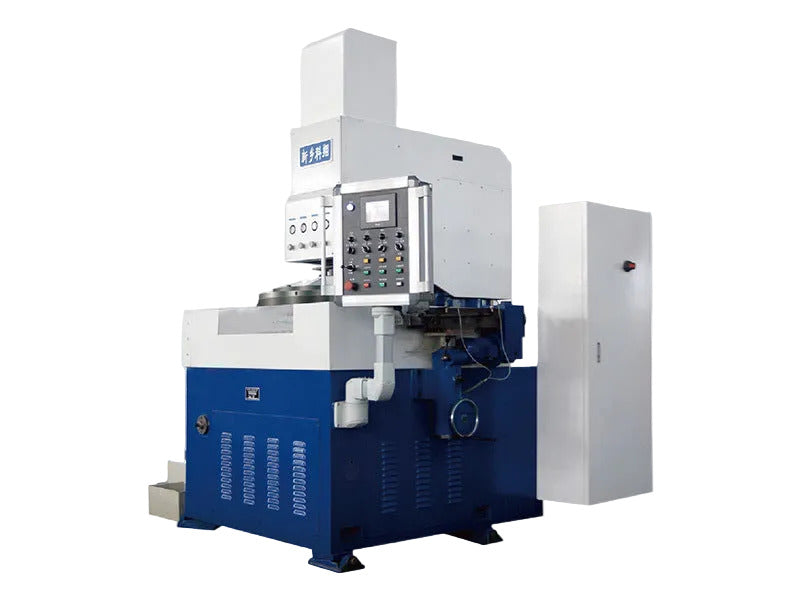

Engineered for industrial-grade, high-precision flat surface machining, the MB43100C Semi-Automatic Double-Sided Grinding Machine is a robust solution designed to process diverse materials including steel, cast iron, cemented carbide, and ceramics. Equipped with a large 1000 x 450 x 70 mm grinding wheel and independent variable-frequency drives for the upper plate, lower plate, and inner ring, this machine delivers exceptional precision and efficiency. It is widely applied across bearing plants, fuel injection equipment manufacturers, diesel engine factories, mold makers, and precision instrument industries.
Key Features & Technical Advantages:
High-Rigidity Cast Bed: Built with a high-strength cast machine body featuring heavy-duty structural integrity to ensure maximum stability and durability under demanding industrial workloads.
Independent Variable-Frequency Control: Features individual variable-frequency drives for the upper plate (5 to 80 r/min), lower plate (5 to 80 r/min ), and inner ring (5 to 50 r/min ) for ultimate operational flexibility.
Advanced Pneumatic & Mechanical Dressing: Utilizes three-stage pneumatic pressure control with automatic switching, alongside a mechanical dresser equipped with a grinding wheel dressing ring.
Planetary Mechanism & Spindle Design: Incorporates a specialized planetary mechanism and main spindle large-diameter thrust bearings to optimize load capacity and stock removal consistency.
Factory-Direct Customization & OEM Services: We provide flexible custom manufacturing, tailored technical support, and bespoke configurations to match your exact workshop requirements.
