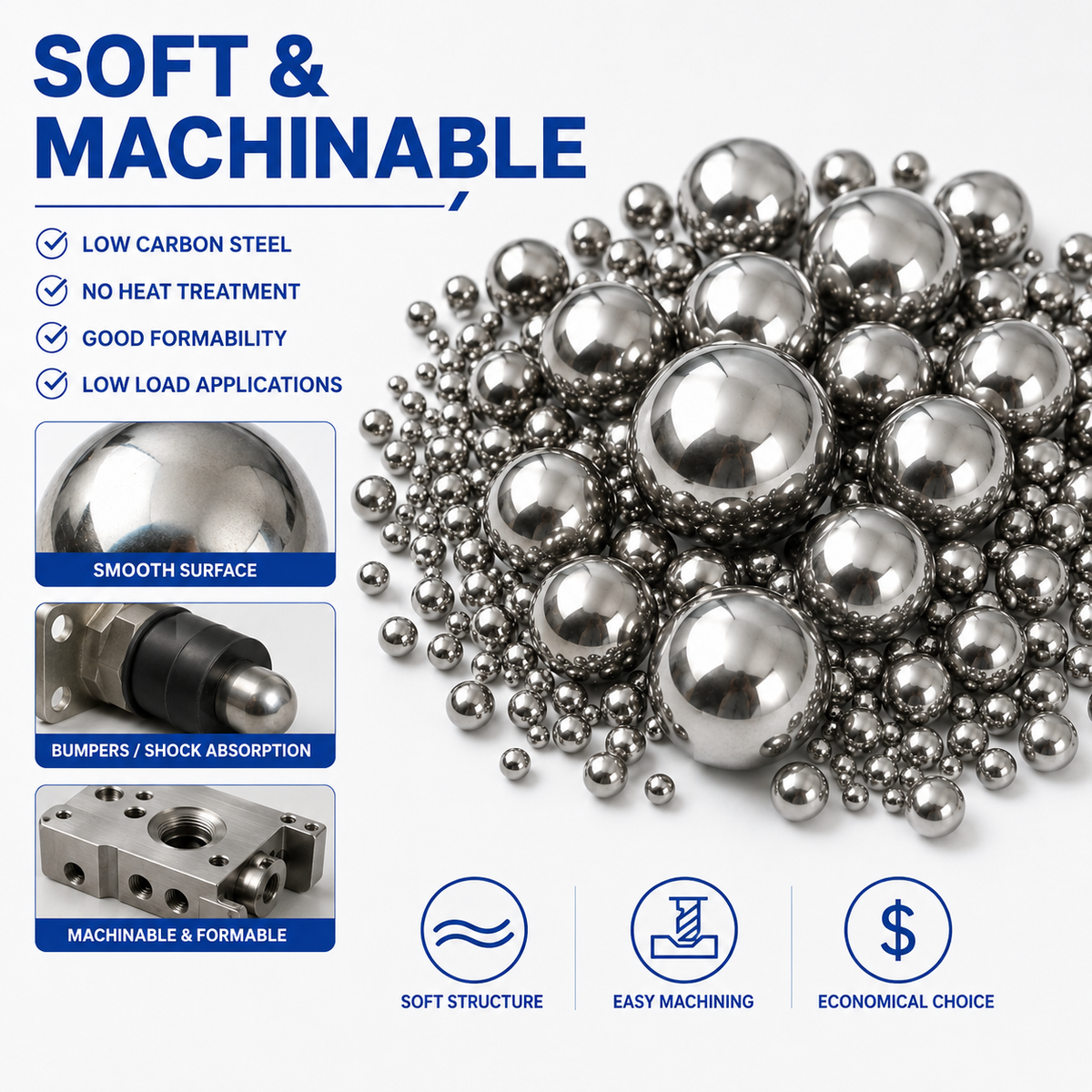

In industrial fabrication, architectural ironwork, and automated hardware assembly, structural versatility often takes precedence over extreme surface hardness. BaseGlobal’s Soft Unhardened Low Carbon Steel Balls are manufactured from premium AISI 1010/1015 mild steel without subsequent thermal carburizing or quenching. By omitting heat treatment, these components retain exceptional ductility, superior machinability, and optimal weldability—making them the definitive choice for fabricators requiring a workable, cost-effective structural element.
1. Technical Specifications & Material Characteristics
BaseGlobal maintains stringent dimensional and metallurgical tolerances to guarantee reliable performance across industrial and decorative processing applications. The core physical and technical parameters include:

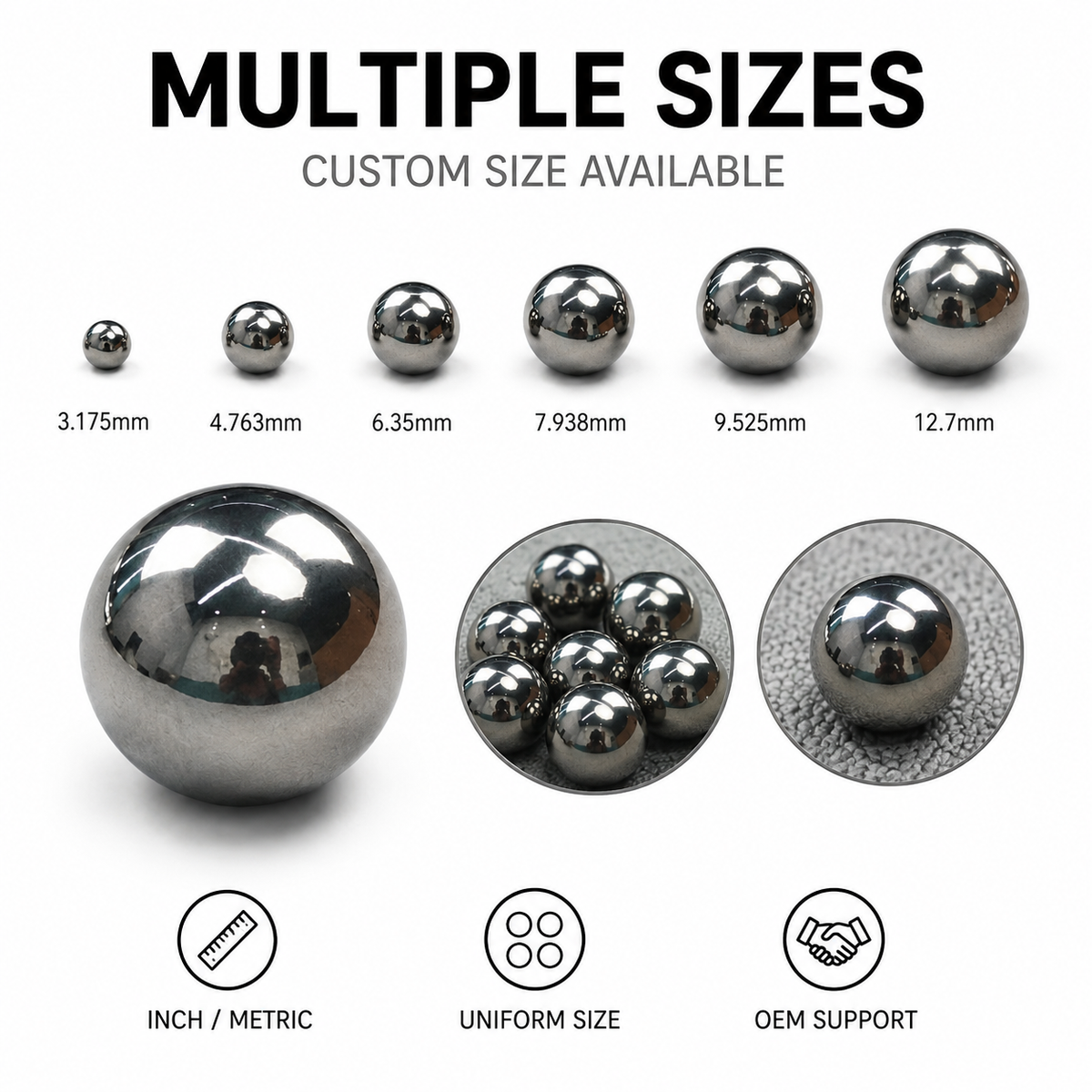

$0.5\text{ mm} \text{ – } 38.1\text{ mm}$ (Comprehensive metric and inch sizing; custom options available)
Precision Grades
G200, G500, G1000 (Optimized for fabrication, general-purpose, and semi-precision integration)
Surface Hardness
HRB 60 – HRB 90
Physical Density
Approx. $7.82\text{ – }7.85\text{ g/cm}^3$
Young's Modulus
Approx. $200\text{ GPa}$
Tensile Strength
Approx. $200\text{ – }300\text{ MPa}$ (Dependent on specific material condition and processing)
Magnetic Response
Ferromagnetic (Compatible with magnetic material handling, automated sorting, and feeding systems)
Surface Finishes
Plain, polished, rust-preventive oiled, or eco-friendly electroplated upon request
Chemical Composition Reference
Note: Chemical composition metrics reflect standard industrial smelting controls; final production conforms to agreed customer purchase specifications and quality documents.
Grade
Iron (Fe)
Carbon (C %)
Silicon (Si %)
Manganese (Mn %)
Phosphorus (P max %)
Sulfur (S max %)
AISI 1010
Balance
$0.08\text{ – }0.13$
$0.10\text{ – }0.35$
$0.30\text{ – }0.60$
$0.040$
$0.050$
AISI 1015
Balance
$0.12\text{ – }0.18$
$0.10\text{ – }0.35$
$0.30\text{ – }0.60$
$0.040$
$0.050$
2. Manufacturing & Process Control
Unlike hardened bearing components or case-hardened structural balls, BaseGlobal's unhardened product line is purposefully directed through a processing route tailored for downstream workability:
Raw Material Selection & Precision Drawing: High-purity low-carbon wire stock undergoes controlled multi-pass drawing to secure tight cross-sectional tolerances and stable internal homogeneity.
Cold Heading & Formability: Advanced high-speed heading presses shear and forge the mild steel into dense spherical blanks, preserving a clean internal grain flow ideal for secondary shaping.
Flashing & Seam Elimination: Mechanical flashing operations remove heading flash lines and ensure a smooth preliminary spherical profile.
Omission of Thermal Quenching: By intentionally bypassing carburization and thermal hardening, the material avoids brittle martensitic transformations, locking in a soft structural state (HRB 60–90).

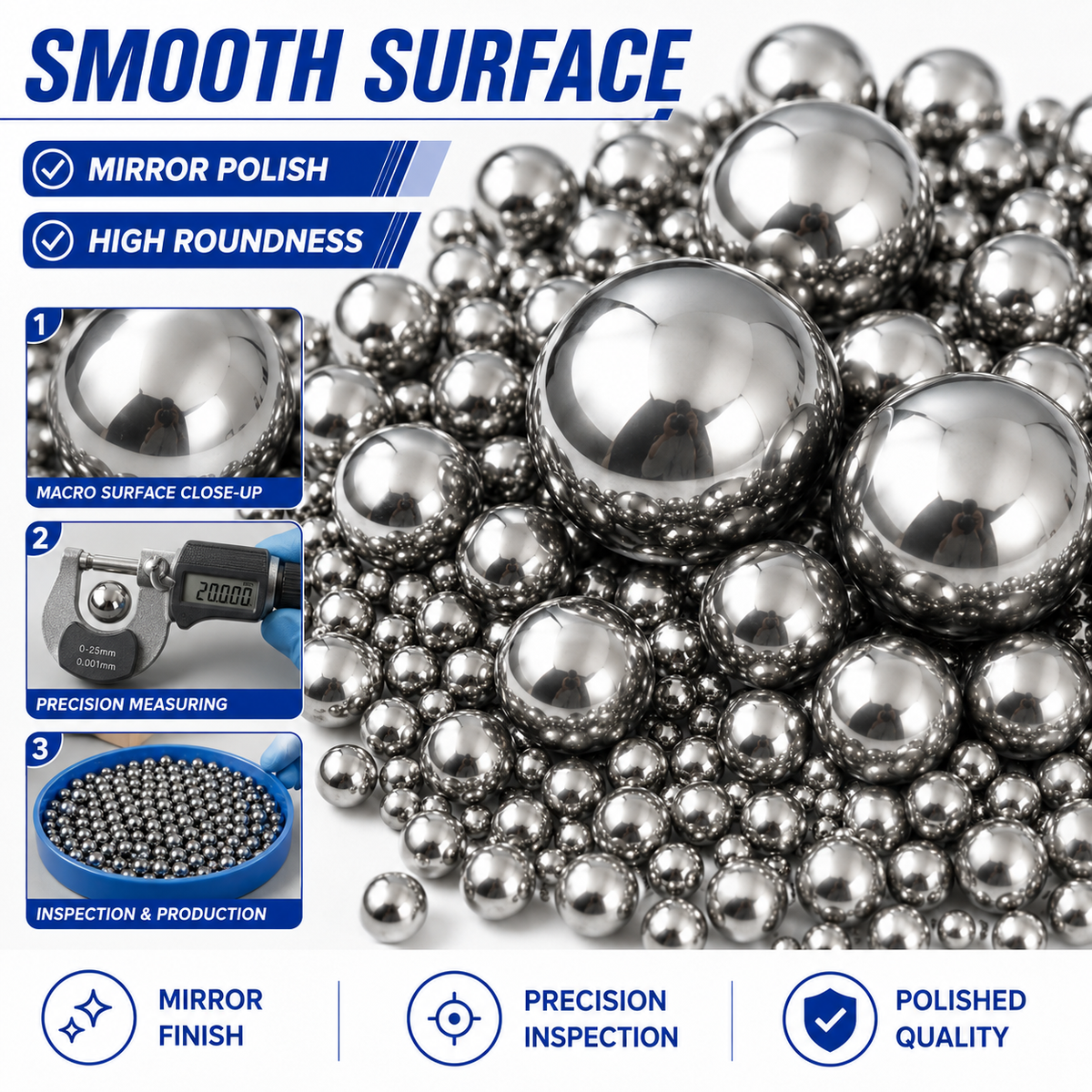

Surface Finishing & Protection: Balls are processed to target commercial precision grades (G200–G1000), rigorously cleaned, and coated with an export-grade protective oil film to prevent premature oxidation prior to application.
3. Industrial Applications & Application Fit
Engineered specifically for scenarios requiring active secondary fabrication, BaseGlobal soft unhardened carbon steel balls excel across diverse non-bearing environments:
Welding Appliances & Fabricated Assemblies: Provides unmatched weldability and structural integration into complex custom hardware frameworks.
Decorative Metalwork & Wrought Iron Architecture: Highly workable and cost-effective for ornamental gates, fencing elements, and architectural metal designs.
Curtain Mechanisms & Caddies: Operates reliably as low-stress positioning or sliding components in household and commercial fixtures.
Stirrers and Mixers: Utilized in non-aggressive industrial mixing environments where magnetic recovery or moderate ballast weight is required.
General Fabrication & Bulk Shot Applications: Deployed as specialized impact media or raw material blanks for secondary machining (drilling, tapping, or turning).
4. Expert Procurement Guidance & Buyer Caveats
⚠️ Strict Avoidance in High-Stress Rolling Contacts: Because these balls are unhardened (HRB 60–90), they possess lower wear resistance and limited load-bearing limits. Do not use this product for high-speed bearings, heavy-duty castors, drawer slides, or fatigue-critical rolling elements. For those requirements, specify BaseGlobal's case-hardened AISI 1010/1015 or through-hardened AISI 1085 alternatives.
🛡️ Inherent Corrosion Limitations: Low-carbon mild steel is not corrosion-resistant. Exposure to moisture, outdoor weather, or chemical cleaning agents will trigger oxidation. For humid or corrosive environments, evaluate BaseGlobal's stainless steel grades or request specialized protective plating.
⚙️ Weld Preparation Protocol: Always verify surface cleanliness (ensuring freedom from heavy oils or protective films) prior to undertaking high-integrity welding operations.
