In modern industrial transmission and medium-load hardware mechanisms, how can engineers strike the ideal balance between stringent cost control and critical mechanical performance? BaseGlobal's AISI 1010/1015 low carbon steel balls utilize an advanced controlled-atmosphere carburizing heat treatment process, achieving an optimal combination of high surface wear-resistance and superior core toughness. Compared with traditional through-hardened steel balls or unhardened soft steel options, this product delivers an economical, structurally stable engineering solution for global OEM manufacturers and distributors.
To meet rigorous engineering design and assembly standards, BaseGlobal enforces strict dimensional and material tolerances across every production batch. The key specifications of this series include:
Technical Parameter
Standard Reference
Material Grades
AISI 1010 / AISI 1015 Low Carbon Steel
Heat Treatment Type
Gas Carburized & Case-Hardened
Standard Diameter Range
0.5 mm – 50.8 mm (Full metric and inch coverage; custom dimensions available)
Precision Grades
G80, G100, G200, G500, G1000, G2000
Surface Hardness
HRC 55 – HRC 65 (Carburized case layer)
Core Characteristics
Tough low-carbon core offering superior impact and alternating load resistance compared to fully hardened high-carbon alternatives
Density Reference
Approx. 7.82 g/cm3
Magnetism & State
Ferromagnetic (Convenient for electromagnetic handling, automated sorting, and assembly)
Note: The ranges below reflect standard metallurgical controls; final deliveries conform to ASTM/ISO international material standards and customer drawing agreements.
Grade
Carbon (C %)
Manganese (Mn %)
Silicon (Si %)
Phosphorus (P max)
Sulfur (S max)
Iron (Fe)
AISI 1010
0.08 – 0.13
0.30 – 0.60
0.15 – 0.35
0.040%
0.050%
Balance
AISI 1015
0.12 – 0.18
0.30 – 0.60
0.15 – 0.35
0.040%
0.050%
Balance
2. Advanced Manufacturing & Process Control
As a specialized manufacturer of industrial precision balls, BaseGlobal implements rigorous oversight across every metallurgical and machining stage:
High-Grade Wire Drawing: Sourcing premium low-carbon steel wire rods with minimal sulfur and phosphorus inclusions, drawn through multi-pass precision dies to ensure consistent blank diameter and structural homogeneity.
High-Speed Cold Heading: Utilizing advanced high-speed cold heading machinery to precisely shear and forge metal wire into high-density ball blanks, preserving internal fiber flow lines.
Flashing (Seam Removal): Effectively removing cold heading flash lines and establishing initial spherical geometry prior to thermal and precision processing.
Controlled-Atmosphere Carburizing & Hardening: The core manufacturing step. Carbon atoms are diffused into the surface layer via automated multi-purpose furnaces, followed by quenching and low-temperature tempering to form a tempered martensite wear-resistant outer shell alongside a tough low-carbon core.
Precision Lapping & Polishing: Multi-directional multi-pass lapping plates refine sphericity, lot size variation, and surface finish to match precise grading requirements (G80–G2000).
Cleaning, Passivation & Oiling: Multi-tank ultrasonic cleaning removes residual grinding grit and oils, followed by the uniform application of an export-grade dewatering rust-preventive oil.
Final Inspection & Packaging: Optical sorting systems, high-precision micrometers, and Rockwell hardness testers verify dimensions, surface defects, hardness, and case depth with complete batch traceability.
3. Typical Application Scenarios & Engineering Fit
BaseGlobal's AISI 1010/1015 case-hardened steel balls are engineered specifically for moderate-load, low-to-medium speed, cost-sensitive semi-precision machinery and hardware mechanisms:

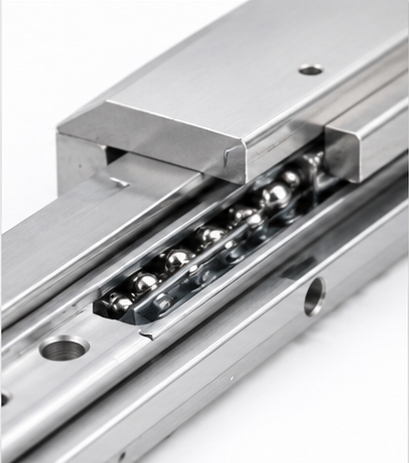

Industrial Slides & Furniture Hardware: Widely deployed in heavy-duty drawer slides, soft-close rails, and office furniture sliders to ensure smooth, low-noise rolling motion.

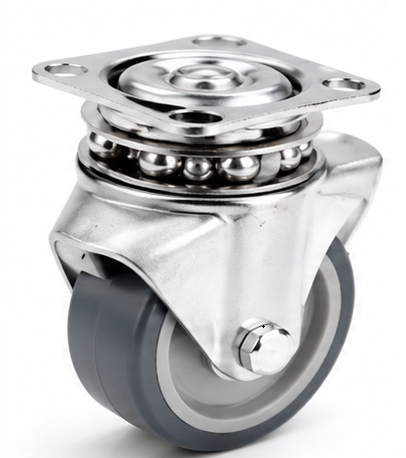

Heavy-Duty Castors & Rollers: Endures repetitive multi-directional rolling friction while surface hardness prevents raceway indentation.
Locks & Precision Latching Mechanisms: Leverages magnetic properties and hardened surfaces to guarantee long-term wear resistance for pins, lock cylinders, and internal linkages.
Material Handling & Conveyor Systems: Serves as economical idler balls and conveyor rollers, lowering overall hardware overhead for long-distance transport lines.
Tumble Finishing & Polishing Media: Functions effectively as deburring and burnishing media for metal or non-metal workpieces thanks to optimal hardness and density.

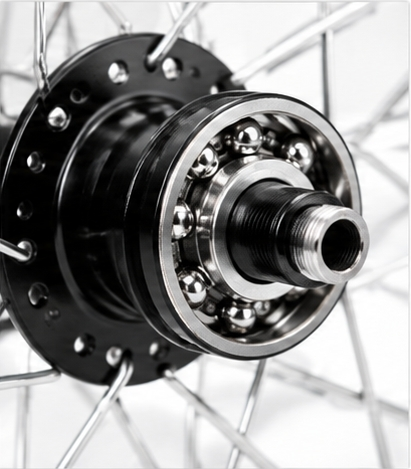

Non-Critical Transmission Components: Utilized in bicycle components, roller skates, and fitness equipment assemblies.
4. Expert Procurement Guidance & Buyer Caveats
To ensure flawless engineering selection and prevent equipment failure caused by material mismatch, BaseGlobal recommends that engineering and procurement teams confirm the following parameters prior to ordering:
⚠️ Strict Limits on Corrosion Resistance: Low carbon steel does not possess inherent corrosion resistance. If your application involves humid outdoor environments, marine exposure, acidic/alkaline chemical agents, food processing, or cleanrooms, avoid using unplated carbon steel. Instead, select BaseGlobal's AISI 420/440C stainless steel balls, AISI 302/304/316 austenitic stainless steel balls, or specify protective electroplating (such as nickel or chrome plating) for low-carbon options.
🔍 Fatigue Life & Speed Thresholds: This product is optimized for low-to-medium speeds and moderate loads. For high-speed applications (such as high-RPM electric motors) or extreme alternating impact precision bearings, fatigue life will not match through-hardened high-carbon chrome steel (e.g., AISI 52100). Evaluate operating limits carefully.
📏 Effective Case Depth Confirmation: For heavy-load profiles or secondary machining operations, specify your exact effective case depth requirements during the quotation phase so engineering teams can fine-tune thermal process curves.
📦 Packaging & Storage Standards: Standard export packing utilizes moisture-resistant double-layer plastic liners packed in heavy-duty cartons or steel drums. Store inventory in dry, well-ventilated environments to prevent condensation-induced oxidation.
