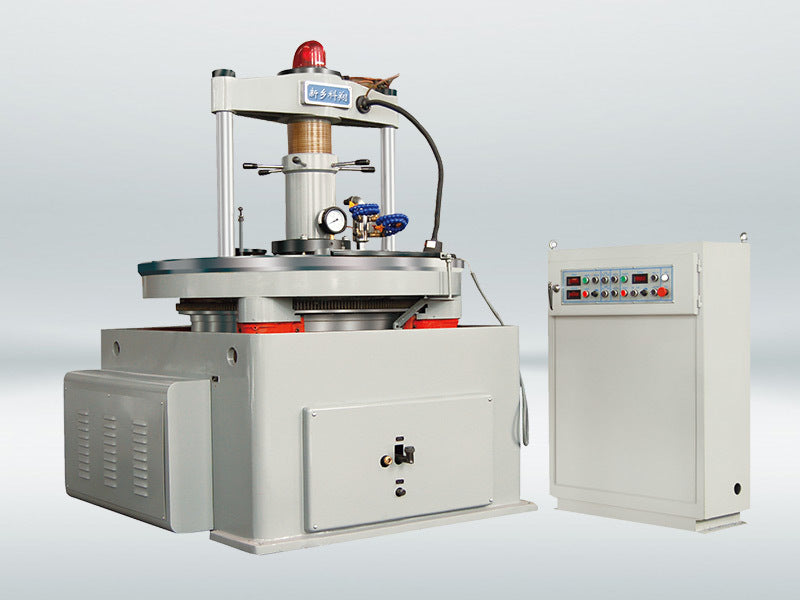

Overview As an established industrial precision equipment manufacturer, BASEGLOBAL delivers high-strength, high-efficiency machinery tailored for modern manufacturing demands. The 3M7466 Vertical Steel Ball Flashing Machine is engineered for the heavy-duty, high-volume mass production and large-cycle processing of steel ball blanks ranging from 2 mm to 12.7 mm. Designed with advanced hydraulic pressurization and eccentric loading, it guarantees superior geometric accuracy and uniform load distribution across grinding plates.
Key Features & Technical Specifications
Dual Frequency Conversion: Independent variable frequency speed regulation for both the spindle (60–150 r/min) and the feeding disc (0.02–0.2 r/min) to maximize energy savings and operational flexibility.
Robust Pressurization System: Hydraulic-driven loading complemented by spring-compressed mechanical pressure holding, delivering up to 110 kN of maximum working pressure.
Precision Lubrication & Monitoring: Main spindle bearings utilize an efficient oil-bath lubrication system, paired with a front-mounted pressure gauge for direct, real-time working pressure monitoring.
Optimized Structural Design: Features a 660×415×80 mm grinding plate configuration and an eccentric pressing layout to ensure uniform loads on both plates.
Capacity & Specs: Handles a maximum ball charge of up to 200 kg (varying by ball diameter) with a robust 15 kW main motor, housed within a 1790×1760×1935 mm footprint weighing 2500 kg.
Ready to Scale Your Steel Ball Production? Upgrade your production line with industry-leading precision equipment built for maximum efficiency and durability.
